直方图的用途

在数据库查询优化中，直方图（Histogram）通过统计字段值的分布情况，帮助查询优化器更精准地估算查询条件的选择率，从而生成更优的执行计划。尤其对于非索引字段或数据分布倾斜的场景，直方图能以非常低的维护成本显著提升查询性能。

今天给大家通过具体示例展示直方图的创建、应用及效果验证，并提供初始化数据供读者复现实验。

一、初始化数据与场景设定

1. 示例表结构与数据生成

场景1：销售表（sales）

表结构：
CREATE TABLE sales ( id INT PRIMARY KEY AUTO_INCREMENT, product_name VARCHAR(50), price DECIMAL(10,2), region ENUM('East', 'West', 'North', 'South'), sale_date DATE );

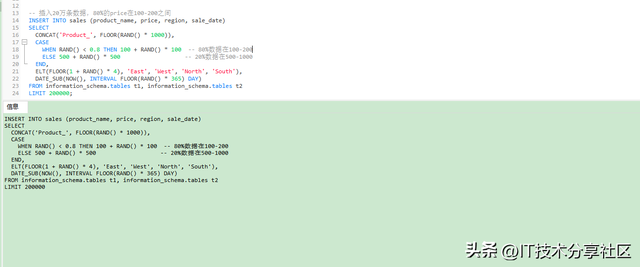

初始化数据（模拟价格分布倾斜）：
-- 插入20万条数据，80%的price在100-200之间 DELIMITER $$ CREATE PROCEDURE GenerateSalesData() BEGIN DECLARE i INT DEFAULT 0; DECLARE batch_size INT DEFAULT 1000; -- 每批次插入1000条 DECLARE max_records INT DEFAULT 200000; -- 关闭自动提交以提升性能 SET autocommit = 0; WHILE i < max_records DO INSERT INTO sales (product_name, price, region, sale_date) SELECT CONCAT('Product_', FLOOR(RAND() * 1000)), CASE WHEN RAND() < 0.8 THEN 100 + RAND() * 100 -- 80%数据在100-200 ELSE 500 + RAND() * 500 -- 20%数据在500-1000 END, ELT(FLOOR(1 + RAND() * 4), 'East', 'West', 'North', 'South'), DATE_SUB(NOW(), INTERVAL FLOOR(RAND() * 365) DAY) FROM ( -- 生成1000行的临时序列（替代笛卡尔积） WITH RECURSIVE seq AS ( SELECT 1 AS n UNION ALL SELECT n + 1 FROM seq WHERE n < 1000 ) SELECT n FROM seq ) AS tmp; SET i = i + batch_size; COMMIT; -- 分批提交事务 END WHILE; -- 恢复自动提交 SET autocommit = 1; END$$ DELIMITER ; CALL GenerateSalesData(); -- 生成20万条数据

场景2：用户活动表（user_activity）

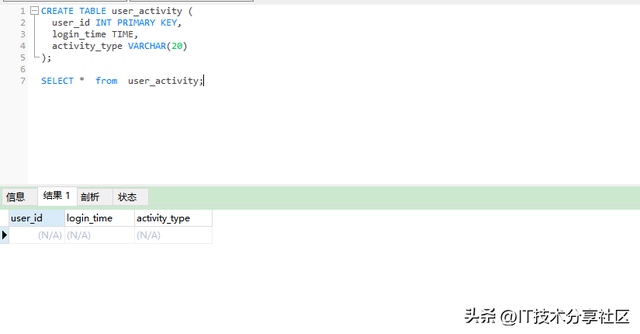

表结构：
CREATE TABLE user_activity ( user_id INT PRIMARY KEY, login_time TIME, activity_type VARCHAR(20) );

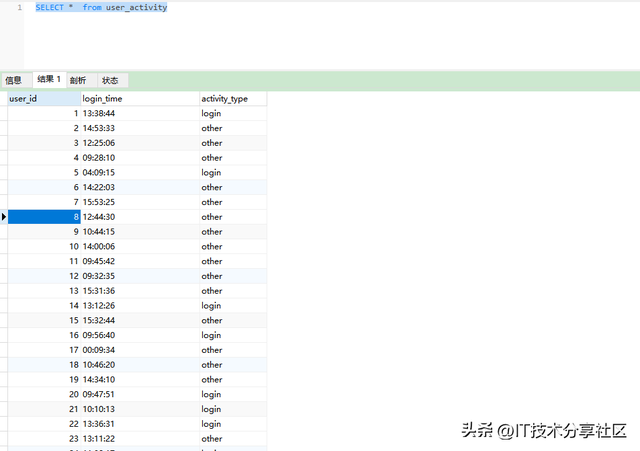

初始化数据（模拟登录时间集中分布）：
-- 插入10万条数据，70%的登录时间在09:00-12:00 DELIMITER $$ CREATE PROCEDURE InsertUserActivityData() BEGIN DECLARE i INT DEFAULT 1; WHILE i <= 100000 DO -- 计算login_time和activity_type SET @random_value = RAND(); SET @hour = IF(@random_value < 0.7, FLOOR(9 + (@random_value * 3) * 3), IF(@random_value < 0.85, FLOOR(RAND() * 9), 12 + FLOOR(RAND() * 12) ) ); SET @minute = FLOOR(RAND() * 60); SET @second = FLOOR(RAND() * 60); SET @login_time = CONCAT(LPAD(@hour, 2, '0'), ':', LPAD(@minute, 2, '0'), ':', LPAD(@second, 2, '0')); -- 设置activity_type SET @activity_type = IF(RAND() > 0.5, 'login', 'other'); -- 插入数据 INSERT INTO user_activity (user_id, login_time, activity_type) VALUES (i, @login_time, @activity_type); SET i = i + 1; END WHILE; END$$ DELIMITER ; -- 执行存储过程 CALL InsertUserActivityData();

二、直方图的创建与使用详解

1. 直方图的基本操作

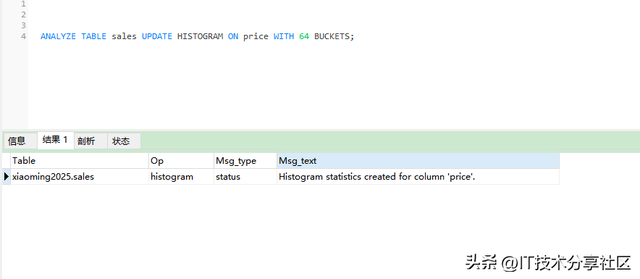

创建直方图：
-- 为sales表的price字段创建直方图（64个桶） ANALYZE TABLE sales UPDATE HISTOGRAM ON price WITH 64 BUCKETS;
支持多列同时创建：ANALYZE TABLE sales UPDATE HISTOGRAM ON price, region。
Bucket数量建议从32开始逐步调整。

删除直方图：
ANALYZE TABLE sales DROP HISTOGRAM ON price;

2. 直方图的存储与查看

存储位置：直方图信息存储在information_schema.COLUMN_STATISTICS视图中，以JSON格式记录桶的分布、频率及数据类型。

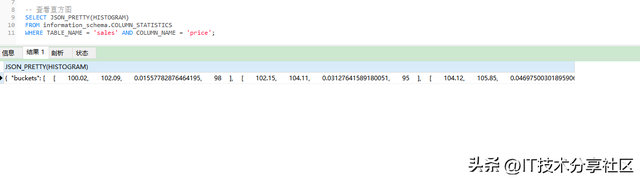

查看示例：
SELECT JSON_PRETTY(HISTOGRAM) FROM information_schema.COLUMN_STATISTICS WHERE TABLE_NAME = 'sales' AND COLUMN_NAME = 'price';
输出示例（等高直方图）：
{ "buckets": [ [ 100.02, 102.09, 0.01557782876464195, 98 ], [ 102.15, 104.11, 0.03127641589180051, 95 ], [ 104.12, 105.85, 0.046975003018959065, 93 ], [ 105.86, 107.91, 0.06267359014611762, 95 ], [ 107.93, 109.88, 0.07837217727327618, 100 ], [ 109.92, 111.64, 0.09407076440043473, 87 ], [ 111.69, 113.73, 0.10976935152759329, 98 ], [ 113.75, 116.18, 0.12546793865475184, 102 ], [ 116.20, 117.94, 0.14104576741939379, 88 ], [ 117.96, 119.92, 0.15674435454655236, 98 ], [ 119.93, 121.97, 0.1724429416737109, 93 ], [ 121.99, 124.26, 0.18814152880086946, 92 ], [ 124.27, 126.21, 0.203840115928028, 97 ], [ 126.22, 128.05, 0.21953870305518658, 90 ], [ 128.07, 129.92, 0.23523729018234513, 96 ], [ 129.93, 131.74, 0.2509358773095037, 89 ], [ 131.76, 133.65, 0.2666344644366622, 88 ], [ 133.66, 135.71, 0.28233305156382077, 99 ], [ 135.74, 137.65, 0.2980316386909794, 105 ], [ 137.69, 139.46, 0.3137302258181379, 89 ], [ 139.48, 141.51, 0.32942881294529647, 97 ], [ 141.54, 143.94, 0.3450066417099384, 97 ], [ 143.95, 145.91, 0.36058447047458037, 100 ], [ 145.94, 148.21, 0.37616229923922234, 99 ], [ 148.23, 150.17, 0.3918608863663809, 99 ], [ 150.20, 151.83, 0.4074387151310228, 90 ], [ 151.84, 153.76, 0.42313730225818136, 98 ], [ 153.79, 155.60, 0.43883588938533996, 95 ], [ 155.62, 157.30, 0.4545344765124985, 86 ], [ 157.32, 159.22, 0.47023306363965706, 96 ], [ 159.23, 161.42, 0.4859316507668156, 98 ], [ 161.44, 163.29, 0.5016302378939742, 98 ], [ 163.32, 165.12, 0.5173288250211328, 96 ], [ 165.15, 166.81, 0.5330274121482913, 96 ], [ 166.82, 168.64, 0.5486052409129332, 93 ], [ 168.65, 170.60, 0.5641830696775751, 93 ], [ 170.61, 172.71, 0.5798816568047337, 95 ], [ 172.72, 174.66, 0.5954594855693757, 93 ], [ 174.67, 176.87, 0.6110373143340176, 92 ], [ 176.89, 178.68, 0.6267359014611762, 95 ], [ 178.69, 180.63, 0.6424344885883347, 92 ], [ 180.65, 182.46, 0.6580123173529767, 95 ], [ 182.47, 184.19, 0.6737109044801353, 88 ], [ 184.20, 186.04, 0.6894094916072938, 94 ], [ 186.05, 188.13, 0.7051080787344524, 96 ], [ 188.16, 190.23, 0.7208066658616109, 97 ], [ 190.24, 192.17, 0.7365052529887695, 86 ], [ 192.21, 194.22, 0.752203840115928, 101 ], [ 194.23, 196.21, 0.7679024272430865, 96 ], [ 196.24, 198.18, 0.7836010143702451, 100 ], [ 198.21, 503.32, 0.7992996014974036, 96 ], [ 503.48, 544.50, 0.8148774302620456, 126 ], [ 545.27, 583.57, 0.8305760173892042, 128 ], [ 583.71, 618.13, 0.8462746045163627, 129 ], [ 618.19, 657.66, 0.8619731916435213, 128 ], [ 657.88, 697.13, 0.8776717787706799, 128 ], [ 697.44, 734.79, 0.8933703658978385, 126 ], [ 734.82, 770.25, 0.909068953024997, 129 ], [ 770.30, 810.23, 0.9247675401521556, 128 ], [ 810.94, 852.52, 0.9404661272793141, 130 ], [ 853.20, 894.47, 0.9561647144064727, 128 ], [ 894.66, 930.69, 0.9718633015336312, 128 ], [ 931.37, 974.87, 0.9875618886607898, 127 ], [ 975.28, 999.41, 1.0, 101 ] ], "data-type": "decimal", "null-values": 0.0, "collation-id": 8, "last-updated": "2025-04-22 05:24:10.208599", "sampling-rate": 1.0, "histogram-type": "equi-height", "number-of-buckets-specified": 64 }

3. 直方图类型与选择逻辑

等宽直方图（Singleton）：每个桶保存单个值及其频率，适用于离散数据（如枚举类型）。

等高直方图（Equi-height）：每个桶保存值范围及累积频率，适用于连续数据（如时间、金额）。

自动选择机制：MySQL根据数据分布和Bucket数量自动选择类型，用户无法手动干预。

三、直方图的实战效果验证

1. 查询性能对比（以sales表为例）

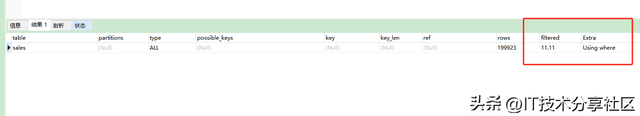

无直方图时：
EXPLAIN SELECT * FROM sales WHERE price BETWEEN 150 AND 200; -- 输出：全表扫描，filtered≈11.11%（假设均匀分布）

创建直方图后：
ANALYZE TABLE sales UPDATE HISTOGRAM ON price; EXPLAIN SELECT * FROM sales WHERE price BETWEEN 150 AND 200; -- 输出：可能使用索引或减少扫描行数，filtered≈39.04%

说明：filtered 表示通过查询条件过滤后，预估满足条件的行数占扫描总行数的百分比。该值范围从 0 到 100，值越大表示过滤效率越高。单表全表扫描（type=ALL）filtered 越大，表示 WHERE 条件过滤效率越高（更多无效数据被过滤)。

2. 多条件查询优化

为region和price字段同时创建直方图，优化器可联合估算选择率：

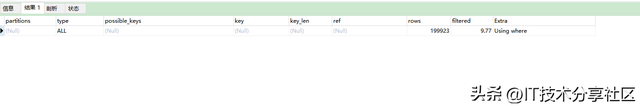

EXPLAIN SELECT * FROM sales WHERE price BETWEEN 150 AND 200   AND region = 'East';

SELECT * FROM sales WHERE price BETWEEN 150 AND 200   AND region = 'East';

直方图帮助优化器更精准估算region='East'（假设占25%）和price范围的条件联合选择率预估为（25% * 80% = 20%）。

-- 为region和price字段同时创建直方图ANALYZE TABLE sales UPDATE HISTOGRAM ON price,region;EXPLAIN SELECT * FROM sales WHERE price BETWEEN 150 AND 200   AND region = 'East';
